SD40E Disc Molding Subsystem

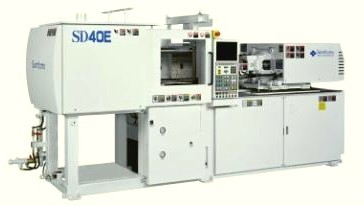

Sumitomo (SHI) Demag’s all-electric SD40E Disc Molding Subsystem with advanced direct-drive technology brings the highest levels of precision, energy efficiency and performance to the disc molding industry. Included in the subsystem are the SD40E direct-drive all-electric injection molding machine, the mold and the takeout robot. (Use links at left for information on the mold and the robot.)

The SD40E features four direct-drive, Sumitomo-built, AC servo motors with full closed-loop control and digital sensors. Injection, rotation, clamping and cut punch are controlled by these motors.

Extensive R&D has gone into the design of the direct-drive motors to achieve a lighter, more compact, low inertia design with the best mechanical configuration for each motion. The result is a low inertia system that draws power only as it is needed, is easier and faster to stop and start, and is exceptionally precise. Plus, the use of permanent magnet stators has made these synchronous motors even more energy efficient. These energy efficiency achievements are significant: the SD40E is 12% more efficient than the previous all-electric model and well over 60% more efficient than the hydraulic model.

In addition to the superior energy efficiency, these beltless motors provide superior mechanical efficiency, repeatability and durability, and avoid problems associated with belt wear/adjustment and belt dust.

Other advantages of the all-electric technology result from lower demand on cooling systems, reduced expenditures related to hydraulic oil and filters, a cleaner molding environment and precision repeatability that ensures less scrap.

Superior performance features for the SD40E include:

• Higher injection pressure, up to 2,230 kg/cm²
• Higher hold pressure, up to 1,784 kg/cm²
• Fast injection speed of 300 mm/sec
• Faster response time of 25 milliseconds
• Longer injection unit stroke
• The ability to run quality parts at sub three seconds (DVD-ROM), with shot weight accuracy and repeatability yielding a typical deviation-to-mean ratio of less than 0.02%

The N-8 control system on the SD40E ensures both ease of use and exceptional QC and machine optimization capabilities.

The result is a disc molding subsystem that combines the high-level of precision molding the disc market demands with high yields and exceptional energy efficiency.

The SD40E disc injection molding machine is backed by Sumitomo (SHI) Demag's comprehensive Customer Satisfaction Program. This means the assurance of ISO 9001 certified manufacturing, attractive financing, professional quality training and manuals, an excellent warranty program, worry-free parts availability, knowledgeable technical support and responsive field service.

Please use the Info links above at left for more information on the SD40E direct-drive all-electric disc molding subsystem.
